Sad Grill

The main part of the garden grill is a metal rib from a normal home oven. The size of the grid depends on the size of the grill. The width of the parts of the metal sheet shall be 105 mm greater than the width of the grid.

The mushrooms are made of leaf steel with a thickness of 0, 8 to 1 mm. It should be clean and not have occalines.

Grilling.

To make a grill, there is a need for scissors to cut a sheet metal, a sticker, a wooden hammer-kian to extract the logs, auxiliary 5x5 cm from the beech and an electrode.

When the leaflets were selected, it was important to secure them so they wouldn't slip out of the castle, or the edge wouldn't be flat. The sampling shall be done by means of a bracket with a length of at least 42 cm. The directional edge on which the flexing is conducted shall be straight and not be free. The heating edge of the heat is wrapped around the radius with a round row of 015 cm.

After the heat is manufactured, the sides and supports shall be marked, the openings of the balloons and the adjustment of the height of the bar shall be checked. The rounds at the joints of the grill are made with metal scissors. The cut edges are carefully brushed by the thumb. The opening edges of the supports and side components shall be intact.

This is in principle the same sampling, but it is not 90°, but 180°.
In the rear corners of the side elements, the windscreen cheeks shall be cut, their edges shall be treated with a filler.
In order to protect the grill against corrosion, all the details of it can be plunged, using a flange lamp and machine oil.

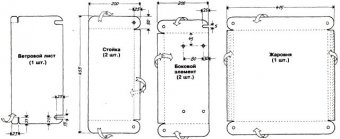

All the necessary dimensions of the garden mushroom are shown in figure 1.

Rhys. 1 Sad grill, necessary preparations, dimensions.

The grill collection.

The balloons shall be inserted from the inside, the ends of which shall be displayed by not more than 5 mm (more cut). The bolts are filled with bulbs and tightened so that the supports and side elements can be easily turned. In order to adjust at height, the bulbs shall be used again and the chatters shall be fixed accordingly.

Installation of the windscreen. In the lower part, there are two openings of a width of 15 mm and a depth of 25 mm where the sheet is clutched with extra stiffness. In the upper part of the leaf, there are two closed-language tongues in the cheeks of side elements.
